Ceiling fan with integrated light

SR-2026-043 · Lighting · Ceiling fan light · June 2026

A two-piece trial of a fan-and-light combination — small enough that the client wanted the electrical build proven before committing to a range.

RecordSR-2026-043

MarketUnited States

BeltZhongshan (Guzhen)

CategoryCeiling fan light

Quantity2 pcs

Cartons2

ClientUS home retailer, lighting aisle

Dispatched2026-06-10

Specification as orderedFan body and lamp housing; 450 × 370 × 230 mm carton

Receiving photographs

Ceiling fan with integrated light as received at the consolidation warehouse — **As received.** The lot on the dock before anything is opened — counted against the packing list and checked for carton damage first, because a claim on transit damage has to be raised before the goods are moved.

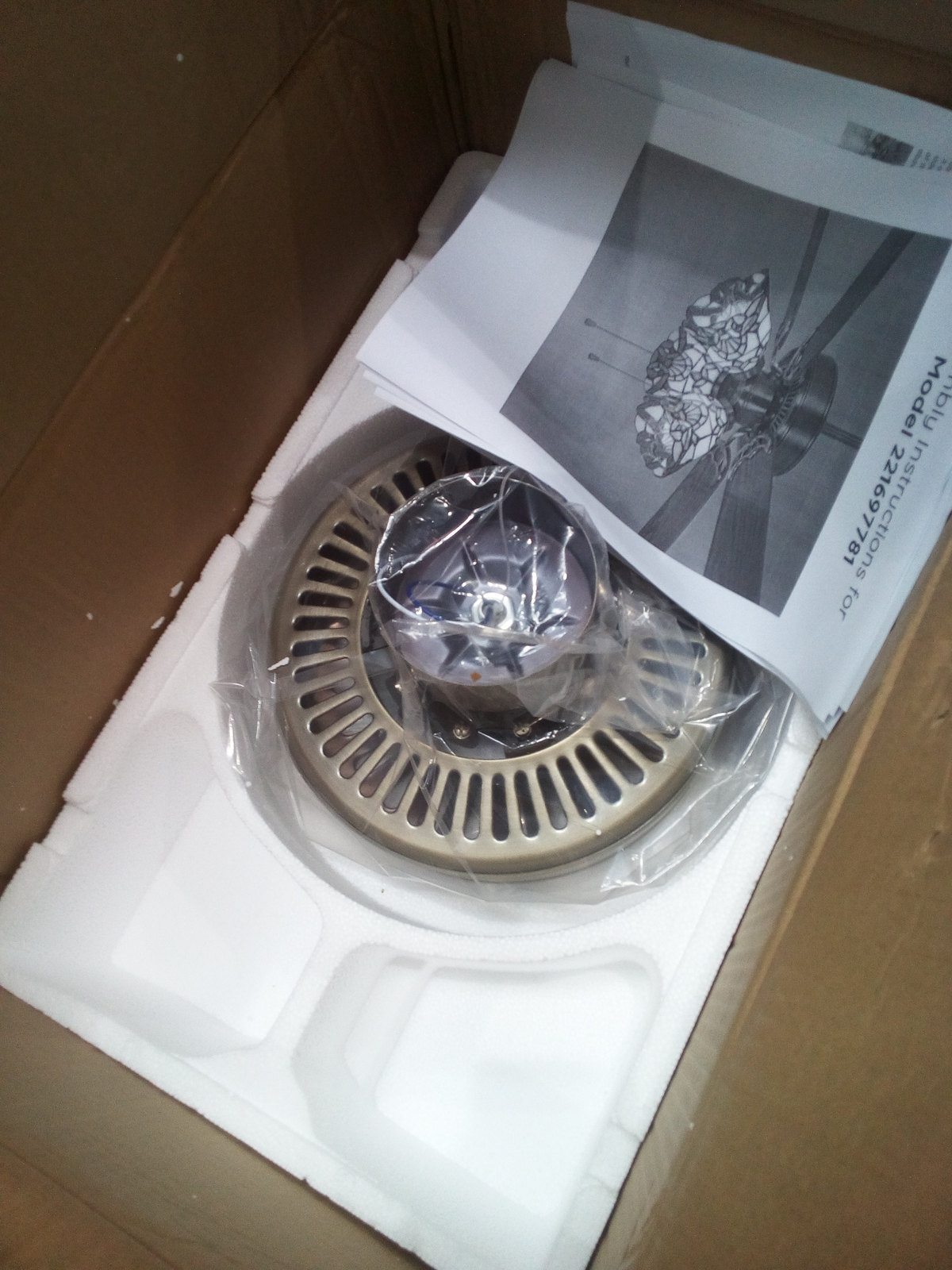

Ceiling fan with integrated light — Opened on our floor — **Opened on our floor.** The first carton of the lot is opened in full. One unit is assembled or powered up as the client will use it, and compared against the approved sample rather than against the catalogue photograph.

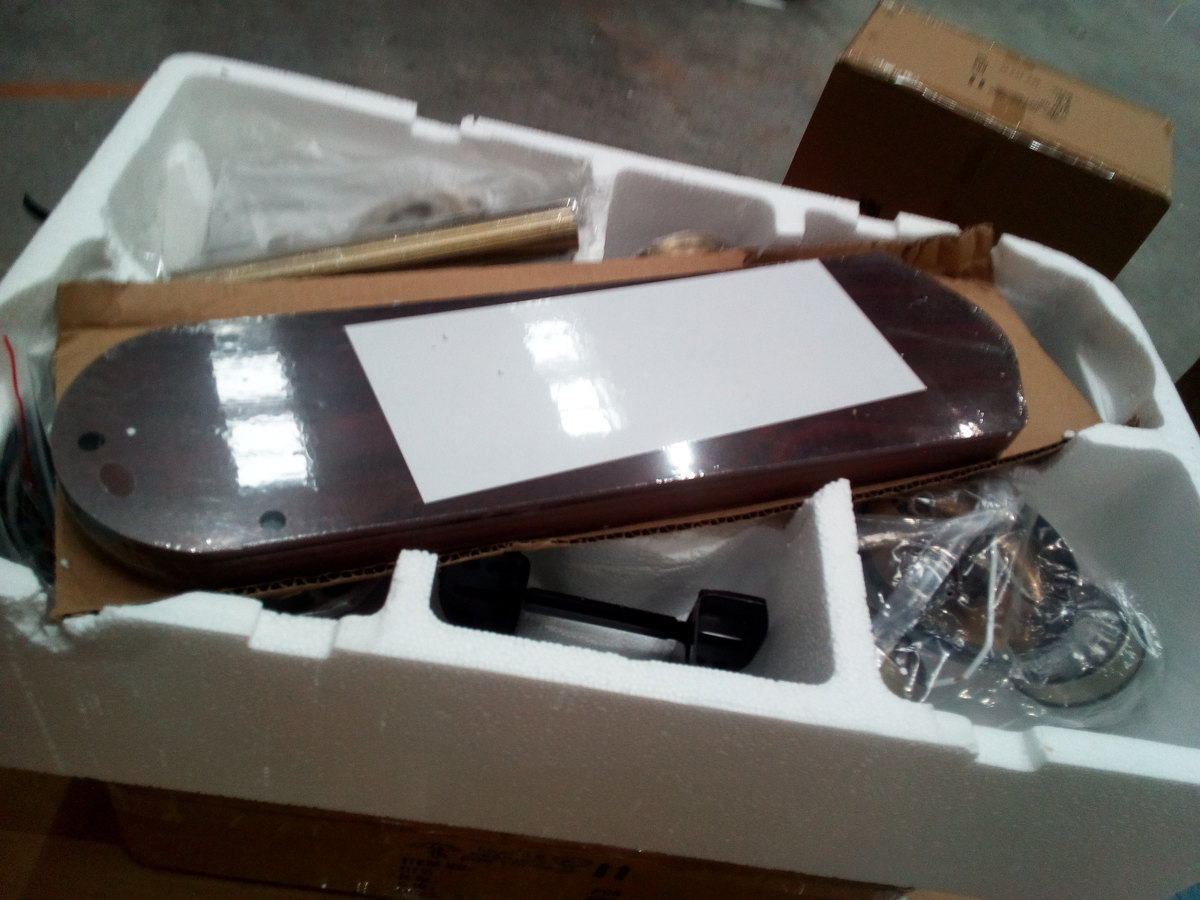

Ceiling fan with integrated light — Fittings and hardware — **Fittings and hardware.** Hardware, fixings and loose components are checked against the parts list before the carton is resealed — a missing bag of fittings is a return on arrival, not a spare part.

Photographs taken at our consolidation warehouse as the lot was received and checked. Container numbers, shipping labels, supplier marks and brand markings are masked; the lot is shown as it arrived, not restyled.

How this order was run

Priced the order against Zhongshan (Guzhen) makers on the same specification, and separated unit price from packing so the comparison was like for like.
Agreed the carton specification in writing before production — carton grade and insert design are where a landed cost quietly moves.
Consolidated the lot at the warehouse so it left as one release rather than as separate supplier drops.

What was checked at receiving

This is the ceiling fan light check sheet — the same list every order in this category goes through before the container is released.

Every unit in the inspection set powered and run at the destination voltage
Ceiling plate, screws and anchor type checked against the fixture weight — the fixing is specified by the weight, not by what is in the box
Suspension drop measured and set to the client's ceiling height before packing
Cable, chain or rod length confirmed; a fixed rod cannot be shortened on site without re-plating the cut end
Diffuser and shade inspected for chips and test-fitted on the assembled fixture

How it was packed

One fixture per carton with a moulded insert, diffusers boxed separately
Rods and chains bagged and taped inside the carton
Corner drop test per lot before the container closes

The note

A ceiling fixture is only as good as its fixing and its drop length. Both are cheap to settle at the factory and expensive to settle on a ladder.

It is why a ceiling order is settled on the fixing and the drop length before the finish is discussed — those are the two details that decide whether the fixture goes up on installation day.
